Specification
Analog Input | 8 Mic/Line XLR w/ individual switchable phantom power |
Analog Output | 1 (XLR) I/O’s are configurable to CAT5e breakout boxes |
Network | 1 (RJ-45) |
USB TO HOST | 3 (USB Type-A, USB2.0) |
USB TO DEVICE | 1 (USB Type-C) |
Phones | 1 (TRS Phones) |
DC | 1 (2.5mm Barrel Jack, Center Positive) |

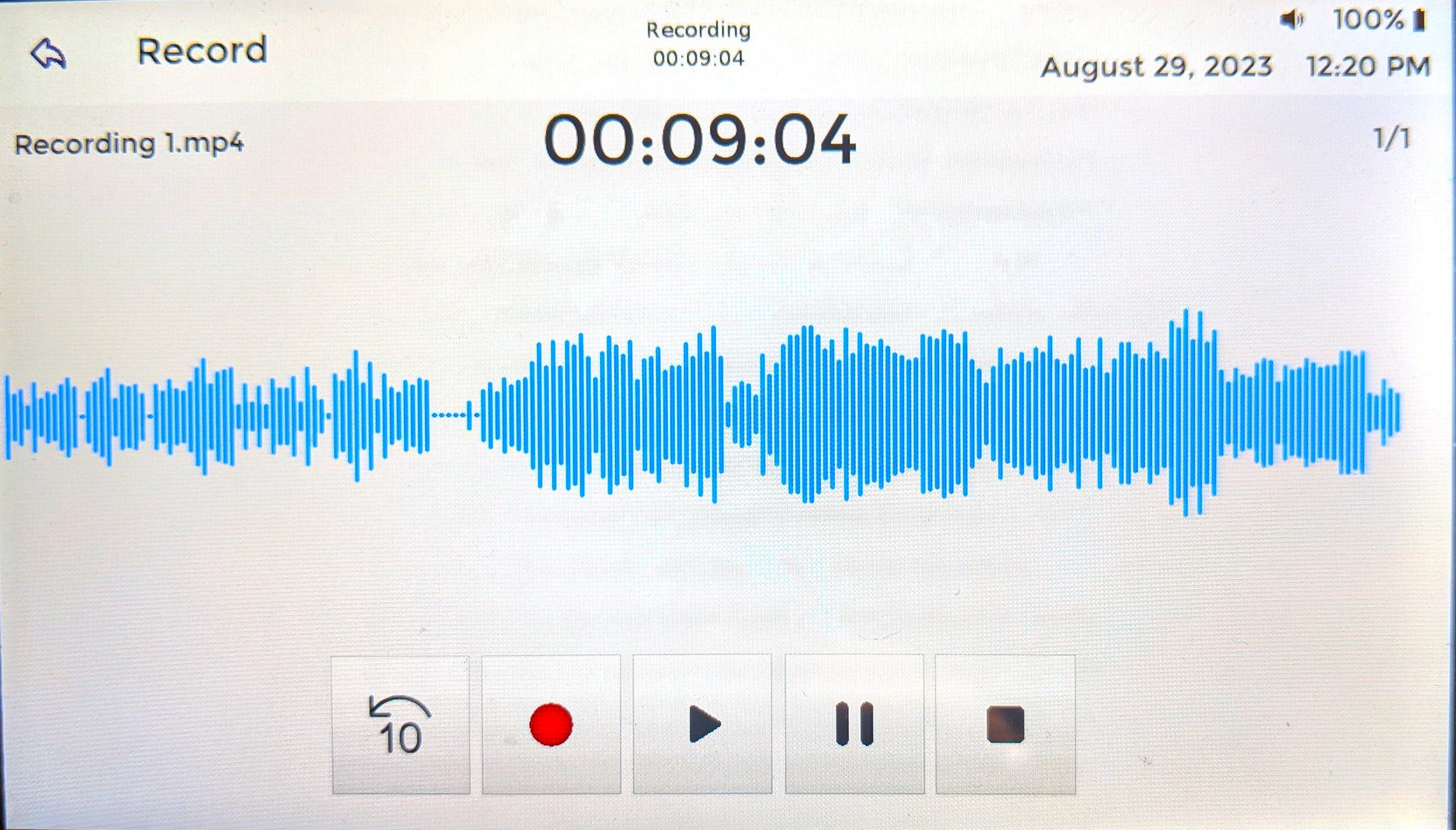

User Interface | 5.5-inch capacitive touchscreen and Integrated web server. |
Recording & Playback | Record 8-tracks, Playback 8 tracks |
Dugan Auto Mix | Assignable to each channel |
Read While Write | 3rd-head confidence monitoring and skip/read back with continuous record |
Speaker ID | Identify and Playback auto detected inputs in the devices playback timeline |
Note taking | Identify and playback from notes typed via playback timeline |
USB storage device | Record to internal micro SD and USB flash drive simultaneously |
Sampling frequency rate | Playback from internal micro SD or USB flash drive |
Audio File Formats | 48 kHz, MPEG-AAC (M4A) and WAV |
Signal delay | Less than 2 ms |
Frequency response | (CH INPUT to LINE OUT, Fs=48 kHz) +/-1.0 dB 20 Hz-20 kHz, reference to the nominal output level@1 kHz, INPUT to LINE OUT |
Total harmonic distortion | Less than 0.1 % 20 Hz - 20 kHz@+4 dBu into 10 kΩ, INPUT to LINE OUT, Input Gain= Min*2 |
Hum & noise level | |
Equivalent input noise | -120 dBu typ., Input Gain= Max. |
Residual output noise | -80 dBu, ST main off*3 |
Dynamic range | 90dB typ., INPUT to LINE OUT, Input Gain=Min. |
Crosstalk | -90 dB, adjacent INPUT/LINE OUT channels, Input Gain= Min. @1 kHz*4 |
Power requirements | DC12 V/3.0 A, (100 V-240 V, 50 Hz/60 Hz) |
Power consumption | 5W typical 36 W for charging dead batteries |
Dimensions | |
W | 240 mm (9.5”) |
H | 63.5 mm (2.5”) |
D | 165 mm (6.5”) |
Net weight | 1.4 kg (3 lb) |
Included Accessories | Owner’s Manual, Power Adapter, USB type C cable, installed 64GB micro XDSC internal memory, 4 x Li-ion rechargable batteries 2-Ethercon 4 XLR to CAT5e break out boxes |
Operating temperature | 0 - 50 °C |
Storage temperature | -20 - 60 °C |
