Dan Dugan Automixing is an audio technology that automatically adjusts the gain of multiple microphones based on who is speaking. By increasing the gain of microphones being used and reducing the gain of others, it helps capture clear speech while minimizing unwanted background noise.

Who Is Dan Dugan?

Dan Dugan is an American sound engineer and inventor who developed the first effective automatic microphone mixing system in 1971.

Working in live theater, Dugan recognized the difficulty of managing multiple microphones as actors moved around the stage and took turns speaking. His invention automated a task that previously required a sound engineer to continually adjust individual microphone controls.

His pioneering work helped establish automatic microphone mixing as an important technology in professional audio.

Where Is Dan Dugan Automixing Used?

Today, Dan Dugan’s automixing technology is found in professional audio equipment and software used in a variety of settings, including auditoriums, classrooms, conference rooms, theaters, houses of worship, and courtrooms.

Dugan developed dedicated automixing hardware and licensed his technology to a variety of audio manufacturers. It shows up in digital mixing consoles, audio processing software, and recording devices.

How Does Dan Dugan Automixing Work?

The technology uses a process called gain sharing.

Rather than simply turning microphones on and off, the automixer continuously analyzes the audio signals from multiple microphones and adjusts their relative gain.

The system distributes gain among the microphones according to their incoming signals, maintaining approximately the same total system gain as a single open microphone.

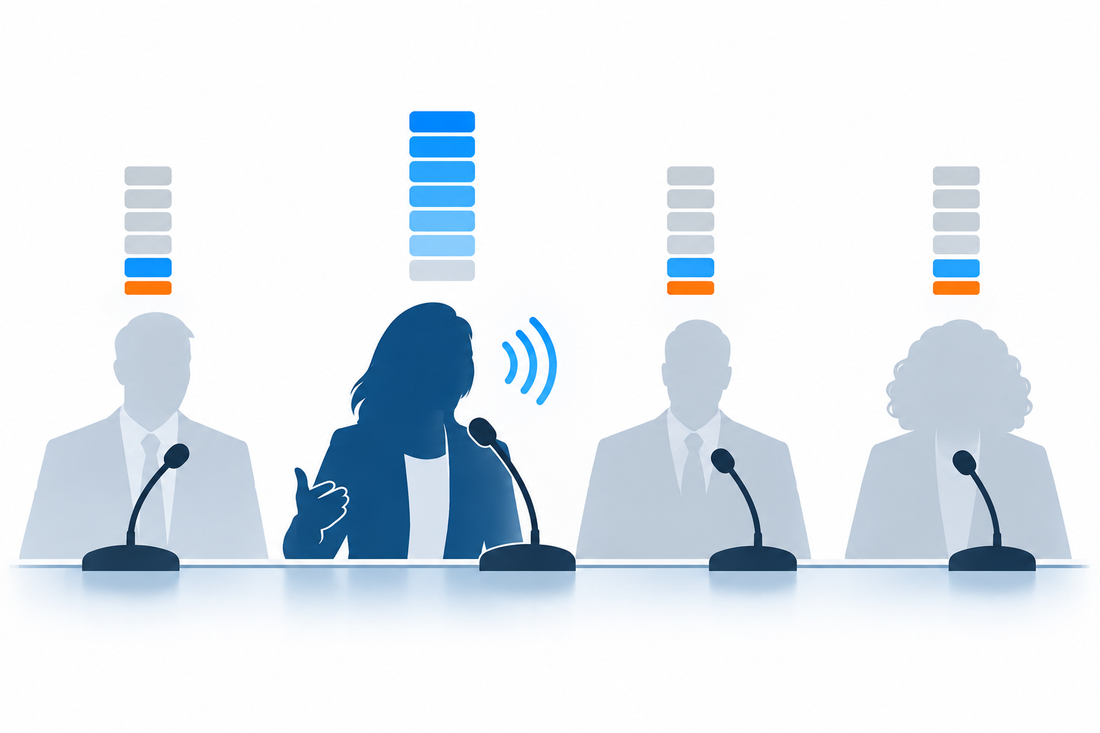

Consider a meeting with three microphones.

• When nobody is speaking: All three microphones pick up low-level room noise. Dugan Automixing distributes the available gain among them, preventing the combined background noise from becoming unnecessarily loud.
• When one person speaks: The system automatically increases the gain of that person’s microphone while reducing the gain of the other two. The speaker’s voice becomes dominant without manual adjustment.
• When two people speak simultaneously: The automixer shares the gain between their microphones, allowing both voices to be captured while reducing the contribution of microphones not being actively used.

These adjustments happen rapidly and continuously as the conversation changes.

Unlike conventional noise gates, which open and close microphones when sound crosses a threshold, Dugan Automixing smoothly redistributes gain. This helps avoid abrupt changes in background noise and produces a more natural listening experience.

How Does Automixing Improve Spoken-Word Recordings?

In a meeting room or courtroom, microphones capture more than just speech. They also pick up ventilation systems, paper shuffling, movement, and voices from other parts of the room.

When several microphones operate at full gain, these sounds can accumulate, making the recording noisier and speech more difficult to distinguish.

Dugan Automixing addresses this problem by reducing the contribution of microphones that are not receiving the dominant speech signals.

This provides several benefits:

• Reduced background noise: Inactive microphones contribute less unwanted sound to the combined audio.
• More consistent room ambience: Background noise remains relatively stable as different people speak.
• Clearer dialogue: The active speaker’s microphone receives a greater share of the available gain.
• Better handling of overlapping speech: Multiple active speakers can share the available gain rather than having one microphone abruptly switched off.

Automixing cannot eliminate noise captured by an active microphone or compensate for poor mic placement. But it can greatly reduce the problems associated with combining audio from multiple microphones.

Dan Dugan Automixing in Speech2Data Recorders

Speech2Data portable digital audio recorders incorporate automatic microphone mixing technology using the Ittiam DDAM algorithm.

The technology is designed to automatically manage microphone gain across active channels during recording.

On Speech2Data recorders, the feature is controlled through the Automatic Level Control (ALC) setting. Enabling ALC activates the automixing algorithm across the active channels. It is a global setting, so the feature is turned on or off for all channels simultaneously.

This provides an important advantage for court clerks, municipal clerks, and other professionals responsible for recording proceedings.

The operator does not need to continually adjust microphone gain as different people speak.

The recorder automatically manages the changing microphone signals, allowing the operator to concentrate on the meeting or proceeding rather than the audio equipment.

Better Recordings With Less Work

The greatest advantage of Dan Dugan Automixing is its ability to manage multiple microphones automatically.

In courtrooms, council chambers, and conference rooms, participants may speak unexpectedly, interrupt one another, or engage in rapid exchanges.

Automixing responds to these changes without requiring someone to operate a mixing console.

By reducing unwanted background noise, maintaining more consistent sound, and automatically managing microphone gain, the technology helps make spoken-word recording simpler and more reliable.
